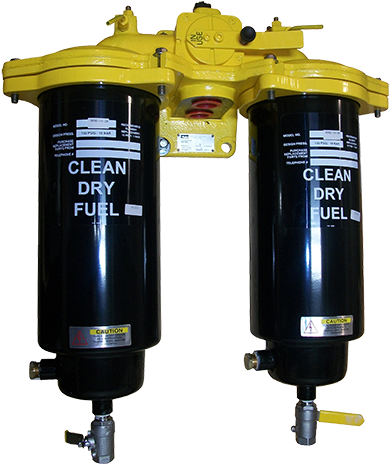

The DFBO duplex filter brings Racor FBO filters to the engine room or any other high flow environment. Made with cast-iron head and steel bowls meet Marine specific applications, that require ABS certification. (Marine model: DFBO-14-MA not shown)

The DFBO comes with the two 25 micron elements. A particulate filter, a coalescer/separator filter, or a water absorptive filter can be used.

Features and Benefits

• Head material is cast-iron, and bowl material is steel.

• Install in vacuum or pressure applications.

• Fluroelastomer seals for biodiesel compatibility.

• Selector valve allows filter isolation for standby use.

• Water-in-fuel sight glass available.

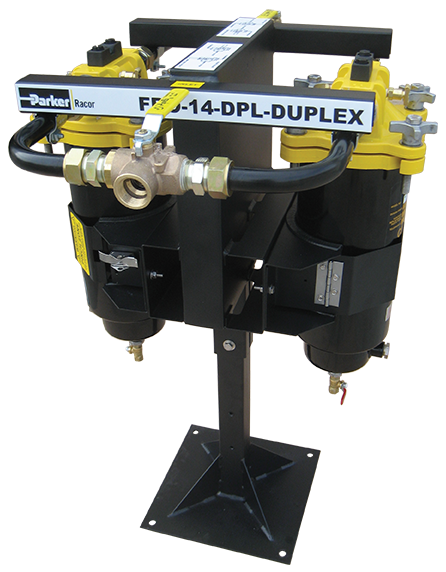

The FBO Duplex Stand was designed with continuous duty applications in mind. The Duplex Stand assembly allows the isolation of one filter at a time for servicing while still in operation. The duplex design ensures that fuel is filtered without interruption.

A particulate filter, a coalescer/separator filter, or a water absorptive filter can be used.

Features and Benefits

• Die-Cast Aluminum Head

• Locking Ring Collar (no v-clamps)

• Maximum Pressure: 150 PSI (10 bar)

• Maximum Temperature: 240^oF (115^oC)

• Manual Vent Valve and Grounding Lug

• 1.5˝ NPT Inlet and Outlet Ports

• Steel Bowl Assembly

• Powder Coated Components

• Lockable Manual Drain Valve: 1/2˝ NPT
