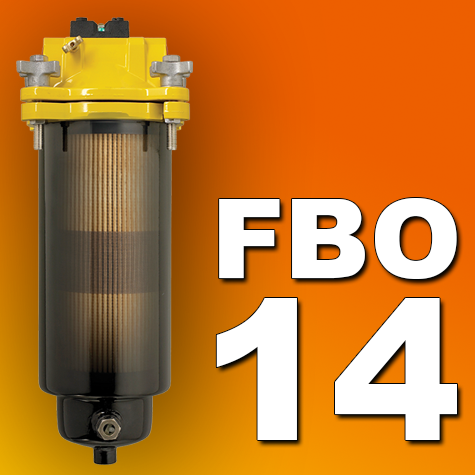

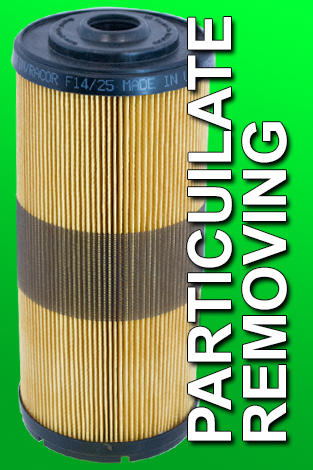

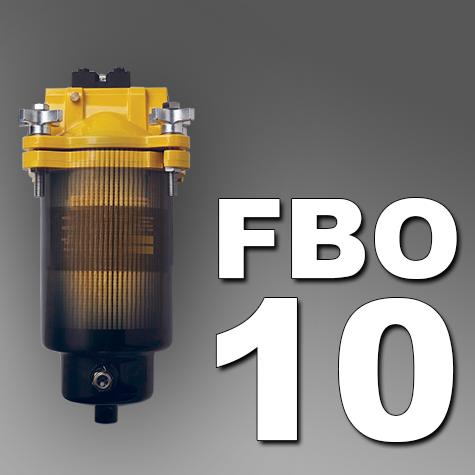

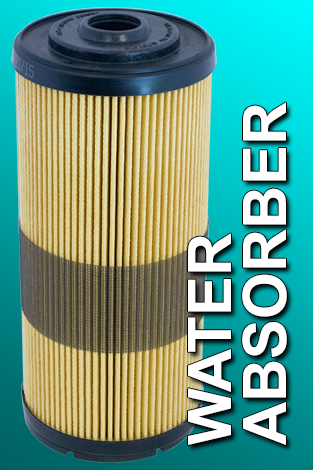

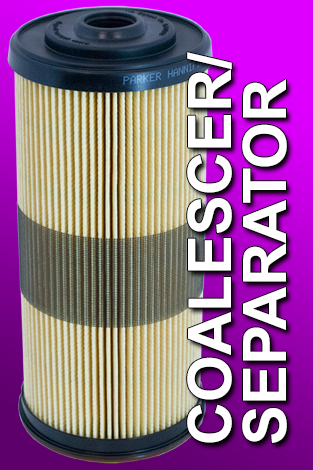

Parker Racor’s FBO assemblies are specifically designed to meet filtration requirements of today’s high-pressure common-rail diesel injection systems. Common applications include: mobile refuelers, refueling cabinets, fuel dispensing pumps, large diesel engines, bulk fuel handling, and fuel transfer. FBO filter systems have three filter options to meet various requirements: Coalescer/separator filter, particulate removing filter, or water absorber filter. For fuel dispensing applications, a coalescer/separator filter is recommended. |
 |
 |
 |
 |
 |
 |
www.parker.com/racor 800.344.3286 racor@parker.com |
CLEANDiesel is a trademark of Parker Hannifin Corporation. © 2015 |
 |
FUEL DISPENSING |
 |
 |
 |
 |
 |
 |
 |

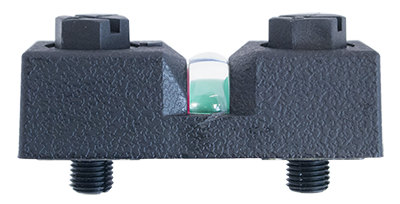

Differential Pressure Gauge (part# 72694) |

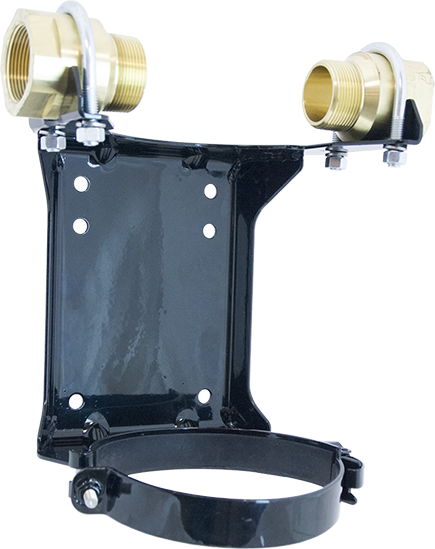

Mounting Bracket (part# 73084) |
Water Sensor Probe Steel - Adapter (part# RK18-1656) Steel - Water Sensor (part# RK23191-01) |
|
 |
Water Sight Glass (part# 72710) |

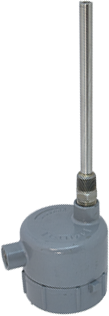

45 watt, 120VAC Heater (part# FBO-HTR-KIT) |
FBO System Options |

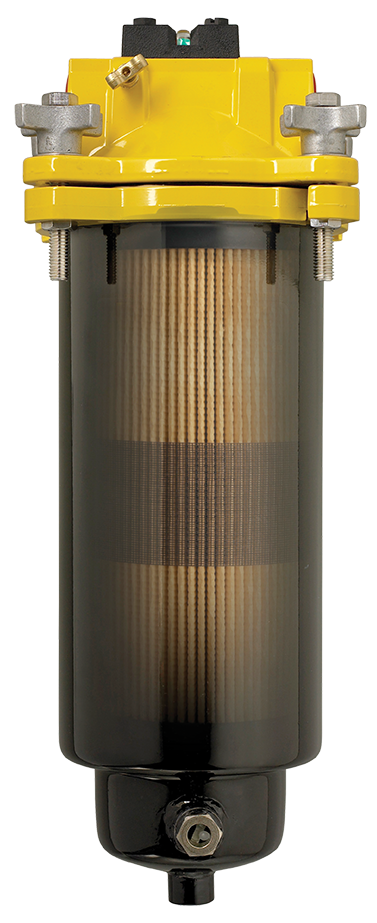

FBO System Features |
Die-Cast Aluminum Head Steel Bowl Assembly Powder Coated Components Locking Ring Collar 1.5” NPT Inlet and Outlet Ports Maximum Pressure: 150 PSI (10 bar) Maximum Temperature 160oF (71oC) Lockable Manual Drain Valve: 1/2” NPT Grounding Lug Manual Vent Valve |
 |
